Large vertical lathes

AS Series single column design (mm 6500 - mm 18000)

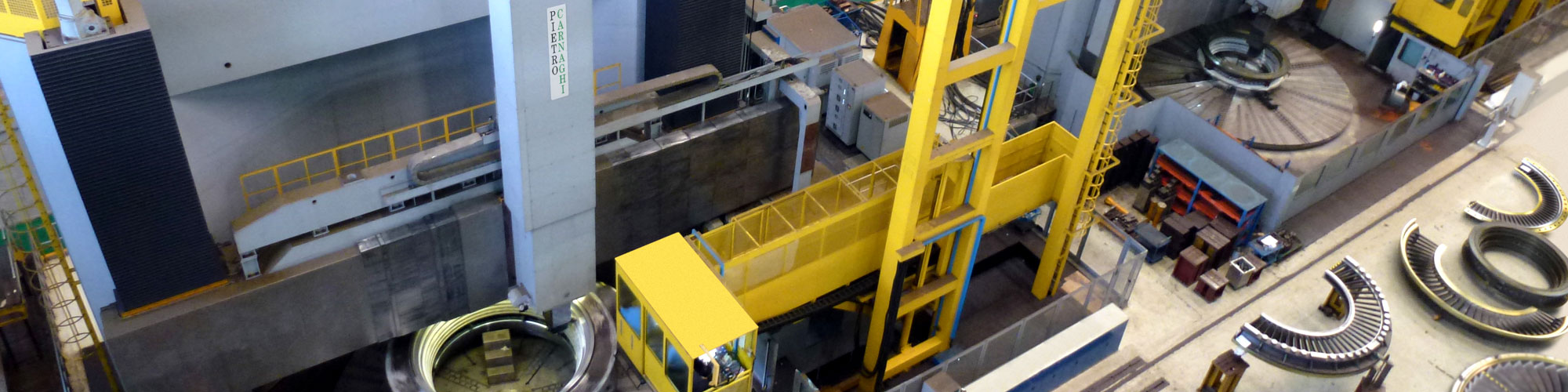

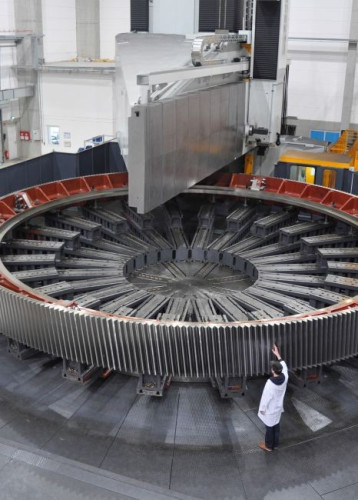

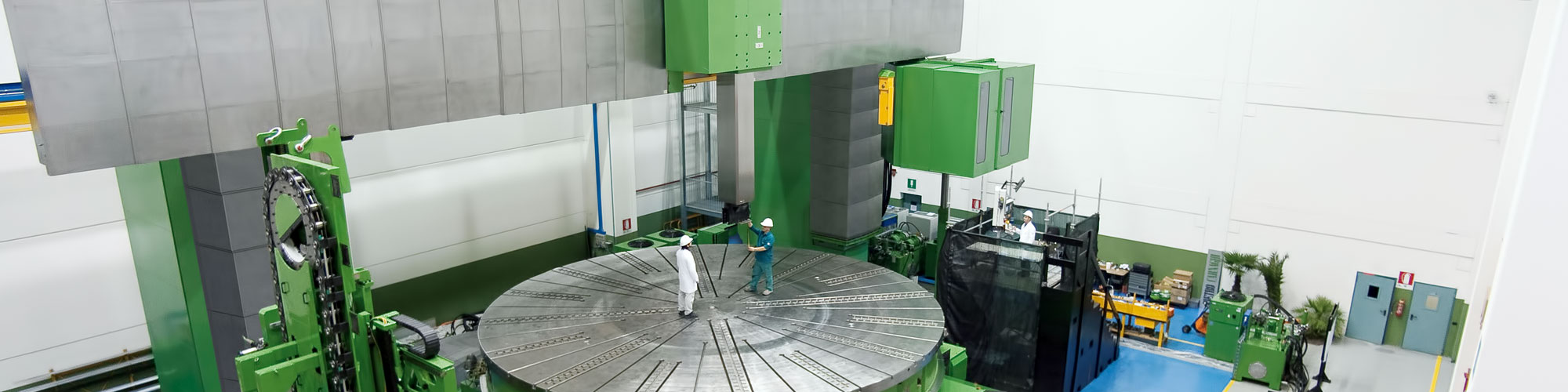

Pietro Carnaghi vertical turning centers model AS are designed in an extremely rigid structure with a single column.
This structure is very functional for large diameter turning operations, having a huge capacity to increase the working diameter.

The AS model structure is composed of one base where the spindle and table gear box are located, one column structure with slideways for movable crossrail and table base (as optional feature it can be translating type).
These elements are assembled to form rigid frame, ensuring maximum stability and strength.

A sophisticated mechanism of the crossrail and column mechanical compensation has been developed in years of experience in different fields: from nuclear parts machining to aerospace components.
Three different types of compensation rods work together in order to minimize geometric deflections, resulting from the movement of large mass units on the machine axis.
In addition machine structures are designed with the finite elements analysis methodology (FEM) and the main frames are subjected to thermal stabilization and treatment processes.


Technical data:

    AS 65
T/TM
AS 80
T/TM
AS 100
T/TM
AS 120
T/TM
AS 140
T/TM
AS 160
T/TM
AS 180
T/TM
Max. turning diameter mm 6500 8000 10000 12000 14000 16000 18000
Table diameter mm 6000 6500 8000 8000 10000 10000 10000
Standard weight t 200 200 200 200 350 350 350
Max. allowable weight t 250 250 350 350 500 500 500
Max. RPM rpm 60 60 40 40 35 35 35
Turning power kW 150 - (230) - (300)
Turning height: fixed crossrail mm 1500
Turning height: movable crossrail mm 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000
Ram section mm 350 x 350 - (400 x 400) - (500 x 500) - (600 x 600)
Ram stroke Z axis mm 1500 - (2000) - (2500) - (3000) - (3500) - (4000)
Milling power kW 40 / 60 / 71 /100
Max. RPM rpm 2500 - 3000 (6000)
Rapid feeds X-Z-axes mm./min 15000 10000
