Vertical lathes

ATT Series (mm 1500-2400)

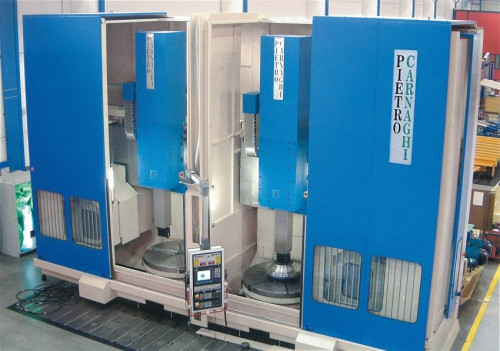

The turning and milling vertical lathe Pietro Carnaghi model ATF has been designed with a very compact termo-symmetrical structure with one single column assembled on the machine base.
ATF lathe can be equipped with a double pallet system, rotating 0 – 180°, useful to make a part centering on the external pallet, while with the internal pallet is in a machining process.
Compactness, rigidity, and extreme precision make the pallet ATF an ideal solution for machining of the most precise mechanical components.

Technical data

    ATT 15 ATT 24
Max. turning diameter mm 1500 2400
Table - Pallet diameter mm 1250 / 1400 2000 / 2200
Max. allowable weight t 12 20
Standard RPM RPM 4,4 - 650 / 1,1 - 400 0,7 - 275 / 0,7 - 250
Turning power kw 60 - (100)
Turning height mm 750 - (1000) - (1200)
Ram section mm 250 x 250
Ram stroke Z axis mm 1000 - (1250)
Milling power kw 37
Max. RPM RPM 3000 - (6000)
Rapid feeds X-Z-axes mm/min 30000
