AC Series Single frame design (mm 1600-3200)

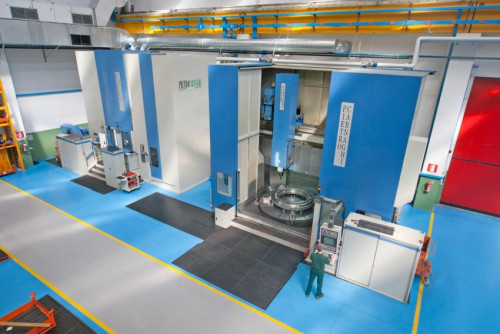

The Pietro Carnaghi vertical turning centre model AC is designed and built in a compact form, with an extremely rigid thermo symmetrical structure, having the column mounted to the table base.
All these elements are assembled together in order to constitute a tough structure ensuring maximum stability and rigidity.
The movable crossrail is designed and sized to withstand severe cutting conditions.
On the front part two horizontal sliding guides support the vertical ram saddle in its horizontal movement (through hydrostatic pockets).The distance between the superior and the inferior guide way is dimensioned to ensure the maximum cutting performances.

The different available configurations (different turning height, ram sections, machining accessories, measuring probes accessories) make the models AC to be the more flexible and useful to any need: starting from the most sophisticated precision in finishing operations (parts for aeronautics), to the most severe cutting conditions (forging rings).


Technical data:

    AC16T/TM AC20T/TM AC24T/TM AC28T/TM AC32T/TM
Max. turning diameter mm 1600 2000 2400 2800 3200
Table - Pallet diameter mm 1250 / 1400 1600 / 1800 2000 / 2200 2200 / 2500 2800 / 3000
Max. allowable weight t 12 15 20 30
Standard RPM RPM 450 / 450 375 / 375 275 / 250 250 / 250 225 / 200
Turning power kw 60 - 100
Turning height: fixed crossrail mm 750 - 1000 - 1200
Turning height: movable crossrail mm 1200 - 1500 - 1800 - 2100 1200 - 1500 - 1800 - 2100
Ram section mm 250 x 250 - (300 x 300)
Ram stroke Z axis mm 1250 - (1500) - (1800) - (2000)
Milling power kw 37 / 40
Max. RPM RPM 3000 - (6000)
Rapid feeds X-Z-axes mm/min 30000 20000
